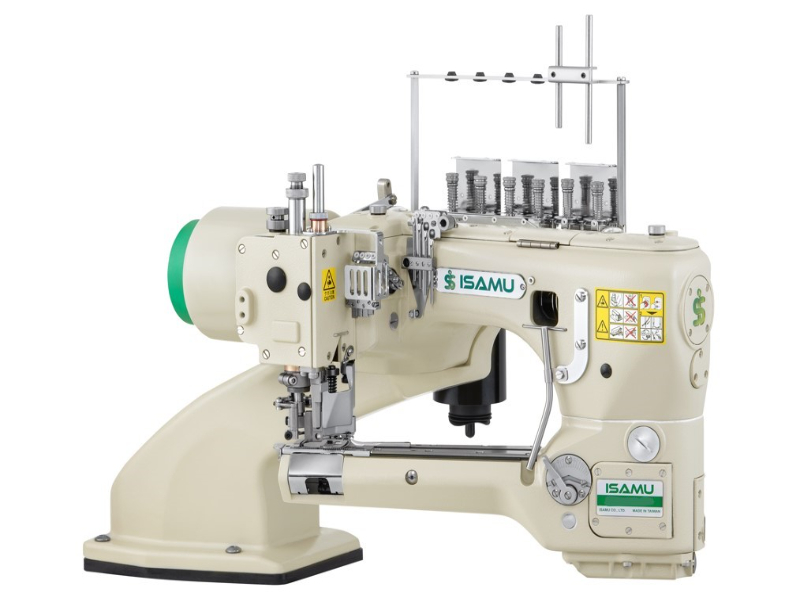

MU62D-452-01

Product number : MU62D-452-01

  • 4 needle 6 thread feed off arm flat seamer interlock sewing machine
  • One side fabric trimmer for sewing light-medium material
  • Suitable for each kind of knitting material.

MU-62D series adopts unique completely closed side cover design which can prevent oil, leakage causing
MU-62D series adopts the brand new patented direct drive computerized mini servo motor, whose driving power can be saved up to 50% compared to traditional v-belt driven clutch motor.
Small cylinder bed of 148mm. circum- ference from needles drop point, suitable for small tubular sewing operation.
Suitable for sewing light weight materials by using elastic float-ing presser foot bottom spring matching with steady feeding mechanism of feed dogs.
Independently adjustable sewing tension, so that to meet the needs of different fabric, thread trace more beautiful.
Differential ratio of feed dogs can be adjusted simply and easily by adjusting level.

MODEL NUMBERING


  • ModelMU62D
  • -
  • Number of Needle4
  • Needle Distance52
  • -
  • Sewing Function01
  • Wide knifeH
  • -
  • Lifter deviceAT
  • /
  • Cutter deviceCT5
  • /
  • Crumb deviceSC7
  • /
  • Electric control devicei70M

Example : MU-62D-4 52-01H-AT-CT5/SC7/i70M


Model MU-62 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine
MU-62DF 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with dual differential feed
MU-62DR 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with external feeding amount adjustment mechanism
MU-62DS 4-needle 6-thread feed-off-the-arm flatseamer small cylinder bed interlock sewing machine
MU-62DLR 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with left and right independent differential feed

Number of needle 33 needle
44 needle
55 needle

Needle Distance 484.8 mm
525.2 mm
606.0 mm
707.0 mm
808.0 mm

Sewing function Single side
fabric trimmer
01General
03Single side fabric trimmer for attaching tape
07Single side fabric trimmer for sewing medium, heavy material, crotch seam with folded taping
Double side
fabric trimmer
12Double side fabric trimmer for sewing light, medium material fully covered
04Double side fabric trimmer for attaching tape
14Double side fabric trimmer for attaching tape with decoration stitches
06 Double side fabric trimmer for curved and small piece
20Double side fabric trimmer for sewing light, medium material
22Double side fabric trimmer for sewing flat butt function
Wide knife 04HDouble side fabric trimmer for attaching tape, heavy material
10HDouble side fabric trimmer for sewing heavy material, crotch seam
18HDouble side fabric trimmer for sewing heavy material, crotch seam

Lifter device ATAir type lifter
ETElectric type lifter

Cutting device CTAir type chain cutter
DTElectric type chain cutter

Suction device SC3General type
SC4Sensor type cutter device with SC3 suction device
SC7Sensor type cutter device with under thread suction and SC3 suction device
SC9Automatic chain cutter device (lifting-up and down suction pipe device)
SC11Electronic type suction device

Electric control device i70MAdvanced model
TD415Basic model
I70MHAdvanced model with hand wheel device

MU62 SERIES ATTACHMENT

ET Electric type lifter
AT Air type lifter
I70MH Advanced model with hand wheel device
CT5
SC3
SC4
L1 LED light
I70M Advanced model
