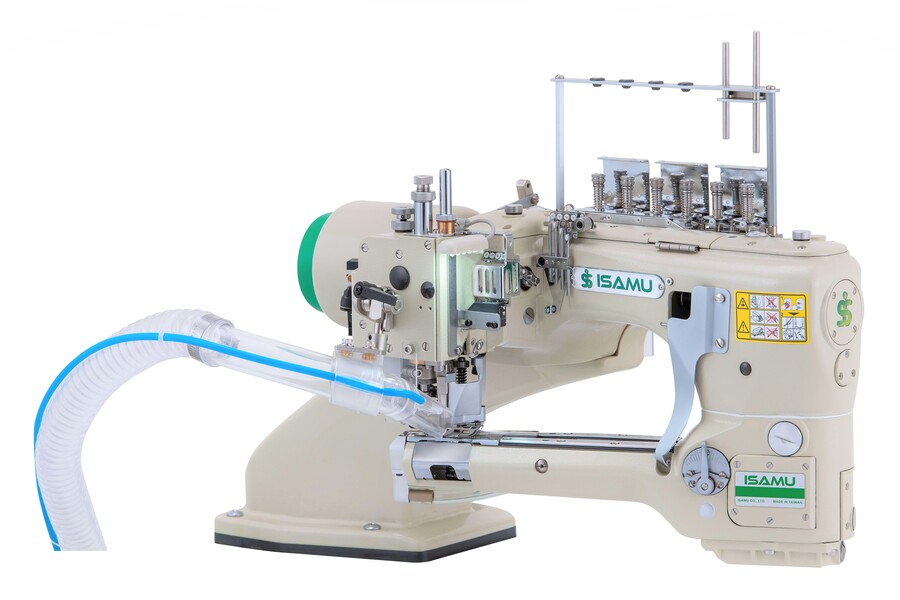

MU62DF-452-12
Product number ： MU62DF-452-12
- 4 needle 6 thread feed off the arm flatseamer interlock sewing machine with dual differential feed
- Both side fabric trimmer for sewing light-medium material
- Suitable for each kind of knitting material.

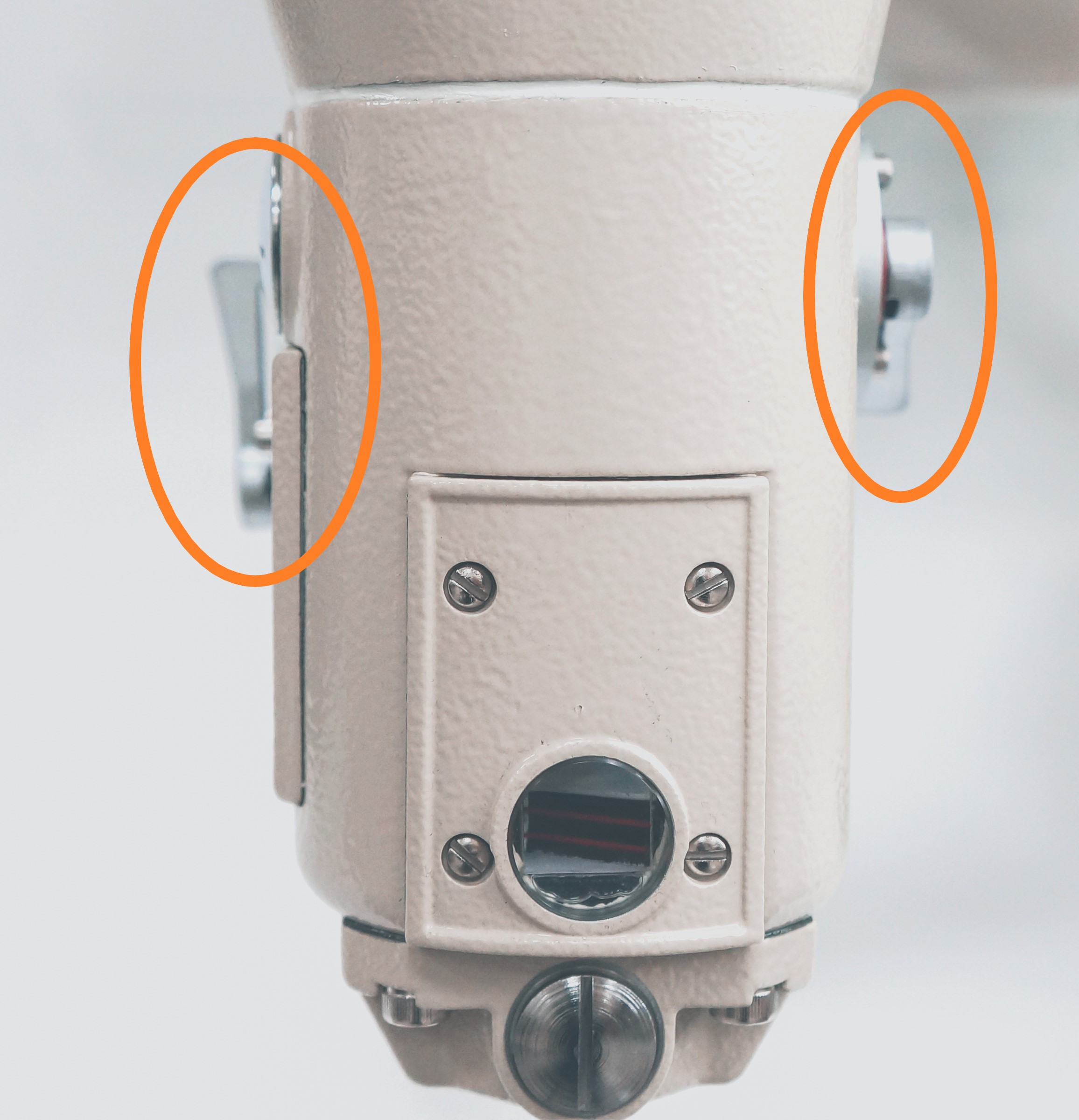

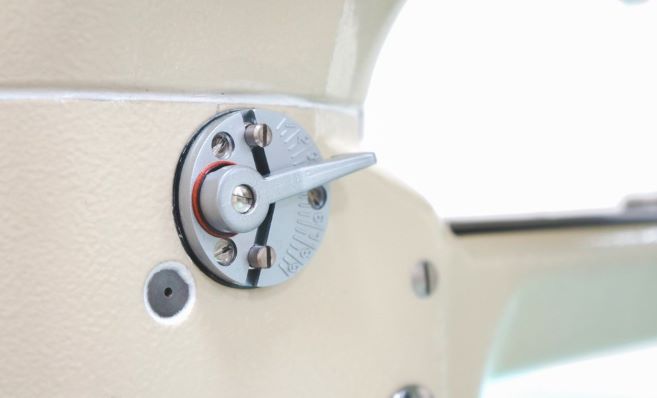

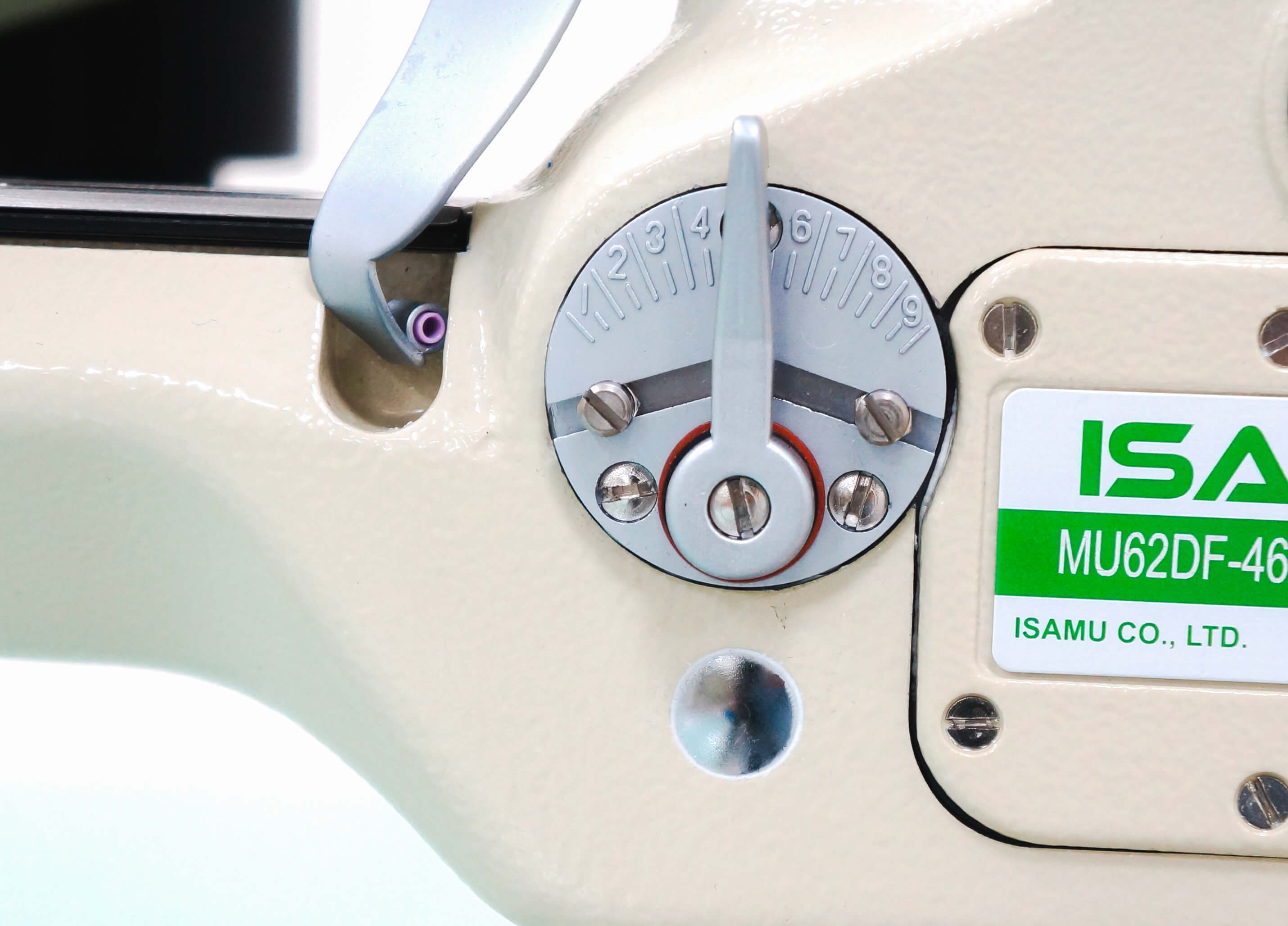

Left regulator controls the front feed dog, turn the regulator to scale 1 for shorter stitch length; turn the regulator to scale 9 for longer stitch length.
Right regulator controls the rear feed dog, turn the regulator to scale 1 for longer stitch length; turn the regulator to scale 9 for shorter stitch length.
The dual differential feed ratio can receive a higher quality of sewn product, it also obtains free puckering from light to medium materials such as silk, lycra, fleece, etc.
General models are more prone to bad quality sewing sample, dual differential can easily drive a relatively smooth quality.
MODEL NUMBERING
- ModelMU62
- -
- Number of Needle4
- Needle Distance52
- -
- Sewing Function01
- Wide knifeH
- -
- Lifter deviceAT
- /
- Cutter deviceCT5
- /
- Crumb deviceSC7
- /
- Electric control devicei70M
Example : MU-62-4 52-01H-AT-CT5/SC7/i70M
| Model | MU-62 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine | |
| MU-62DF 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with dual differential feed | ||
| MU-62DR 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with external feeding amount adjustment mechanism | ||
| MU-62DS 4-needle 6-thread feed-off-the-arm flatseamer small cylinder bed interlock sewing machine | ||
| MU-62DLR 4-needle 6-thread feed-off-the-arm flatseamer interlock sewing machine with left and right independent differential feed | ||
| Number of needle | 33 needle | |
| 44 needle | ||
| 55 needle | ||
| Needle Distance | 484.8 mm | |
| 525.2 mm | ||
| 606.0 mm | ||
| 707.0 mm | ||
| 808.0 mm | ||
| Sewing function | Single side fabric trimmer |
01General |
| 03Single side fabric trimmer for attaching tape | ||
| 07Single side fabric trimmer for sewing medium, heavy material, crotch seam with folded taping | ||
| Double side fabric trimmer |
12Double side fabric trimmer for sewing light, medium material fully covered | |
| 04Double side fabric trimmer for attaching tape | ||
| 14Double side fabric trimmer for attaching tape with decoration stitches | ||
| 06 Double side fabric trimmer for curved and small piece | ||
| 20Double side fabric trimmer for sewing light, medium material | ||
| 22Double side fabric trimmer for sewing flat butt function | ||
| Wide knife | 04HDouble side fabric trimmer for attaching tape, heavy material | |
| 10HDouble side fabric trimmer for sewing heavy material, crotch seam | ||
| 18HDouble side fabric trimmer for sewing heavy material, crotch seam | ||
| Lifter device | ATAir type lifter | |
| ETElectric type lifter | ||
| Cutting device | CTAir type chain cutter | |
| DTElectric type chain cutter | ||
| Suction device | SC3General type | |
| SC4Sensor type cutter device with SC3 suction device | ||
| SC7Sensor type cutter device with under thread suction and SC3 suction device | ||
| SC9Automatic chain cutter device (lifting-up and down suction pipe device) | ||
| SC11Electronic type suction device | ||
| Electric control device | i70MAdvanced model | |
| TD415Basic model | ||
| I70MHAdvanced model with hand wheel device | ||
MU62 SERIES ATTACHMENT
ET Electric type lifter
AT Air type lifter
I70MH Advanced model with hand wheel device
CT5
SC3
SC4
L1 LED light
