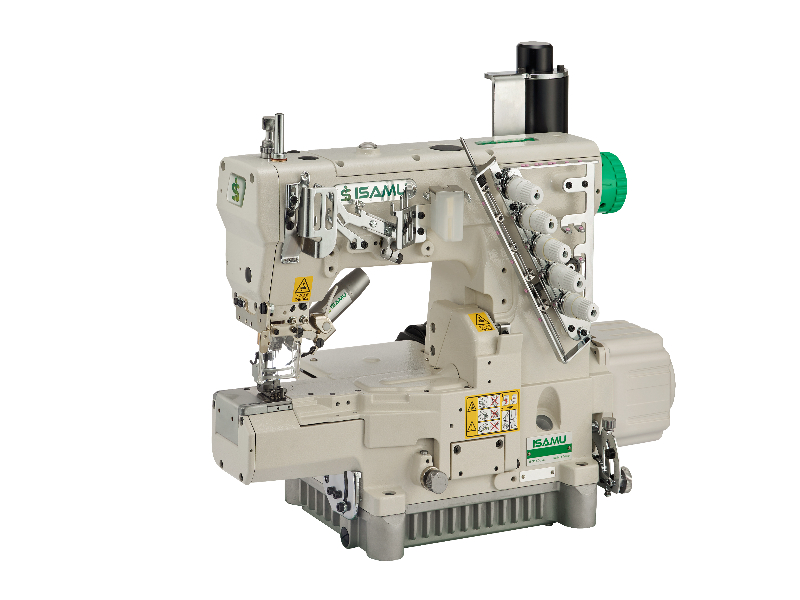

MU700
Product number ： MU700
- Super high Speed Multi Module Cylinder Bed Interlock Sewing Machine.
- Unique cylinder bed from needle drop point to the left end of cylinder bed only 47mm.

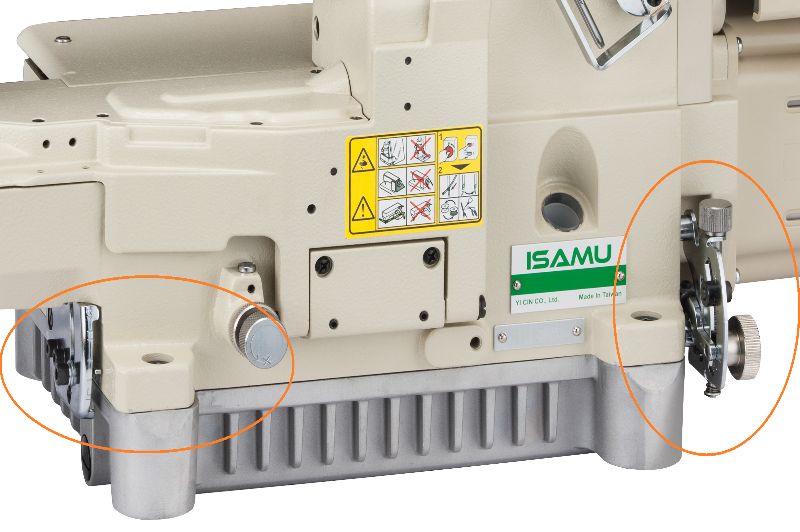

- Adjuster is easy and precise control of stitch length and differential ratio.
- Cam convertible to 31 and 33mm is applicable to various productions.
- Suitable for sewing T-shirt, POLO, sportswear each kind of knitting material.
Import high quality oil seals, No leak oil situation!

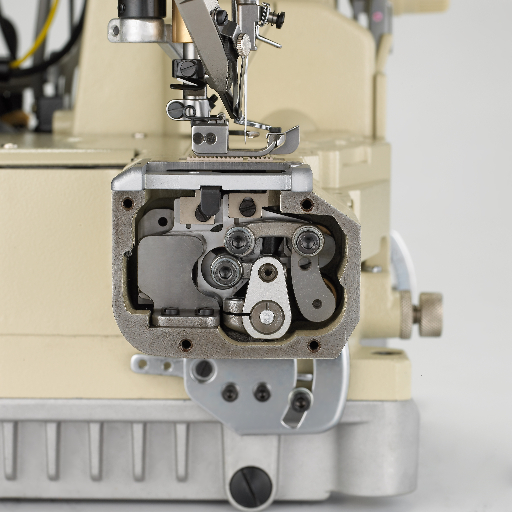

The system force lubrication and fast recycling oil system!
New press foot lifter mechanism!

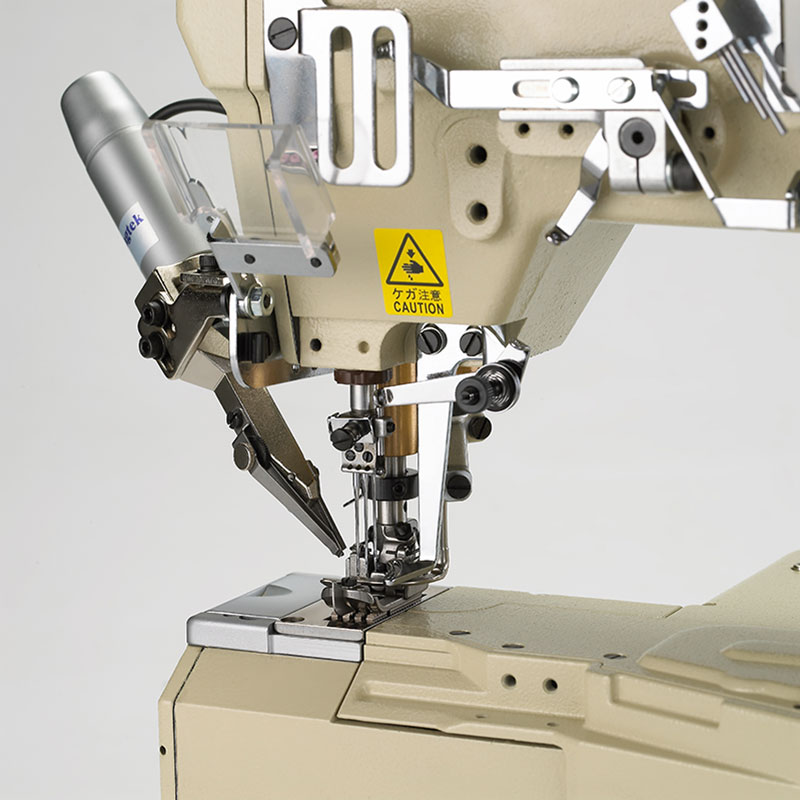

Auto cutter device, Double effectiveness!
MODEL NUMBERING
- ModelMU700
- -
- Number of Needle3
- Needle Distance56
- -
- TrimmerAUT
- -
- AttachmentP
Example : MU700-3 56-AUT-P
| Model | MU700 Super high speed multi module cylinder bed interlock sewing machine | |
| MU713 Super high speed cylinder bed interlock sewing machine for stitch covering | ||
| MU721 Super high speed cylinder bed interlock sewing machine for hemming with left hand fabric trimmer | ||
| MU735 Super high speed cylinder bed interlock sewing machine for waistband attaching with right hand fabric trimmer | ||
| Number of needle | 22 needle | |
| 33 needle | ||
| Needle Distance | 404.0 mm | |
| 484.8 mm | ||
| 565.6 mm | ||
| 646.4 mm | ||
| Cutting device | AUTAir-Type Top and Under Thread Trimmer | |
| EUTElectric-Type Top and Under Thread Trimmer | ||
| AWTAir-Type Under Thread Trimmer and Wiper | ||
| EWTElectric-Type Under Thread Trimmer and Wiper | ||
| Attachment | PTeeth-type rear puller | |
| PSThin teeth-type rear puller | ||
| PFFlat teeth-type rear puller | ||
| NPThin teeth type without top rear puller | ||
| CSCondensed stitch device | ||
| ECElectronic waste suction type | ||
| BFAutomatic hemming device | ||
| TFUAuto tape feeder | ||
MU700 SERIES ATTACHMENT
AIR-TYPE TOP THREAD TRIMMER
AIR-TYPE UNDER THREAD TRIMMER
AIR-TYPE LIFTER DEVICE
ELECTRIC-TYPE TOP THREAD TRIMMER
ELECTRIC-TYPE UNDER THREAD TRIMMER
ELECTRIC-TYPE LIFTER DEVICE
AIR-TYPE WIPER DEVICE
